RX8 5 Speed Cable Clutch Kit for Honda K20/24 and Cologne Cosworth V6

A fabricated clutch fork, bearing spacer and pivot bracket for converting the 5 speed Mazda RX8 gearbox from hydraulic actuation to cable to suit a cable pedal box.

The clutch fork accepts the standard Mk1 and Mk2 Escort style clutch cable end. The cable can be easily adjusted with the 2 nuts on it that pass through the mounting lug on the adaptor plate.

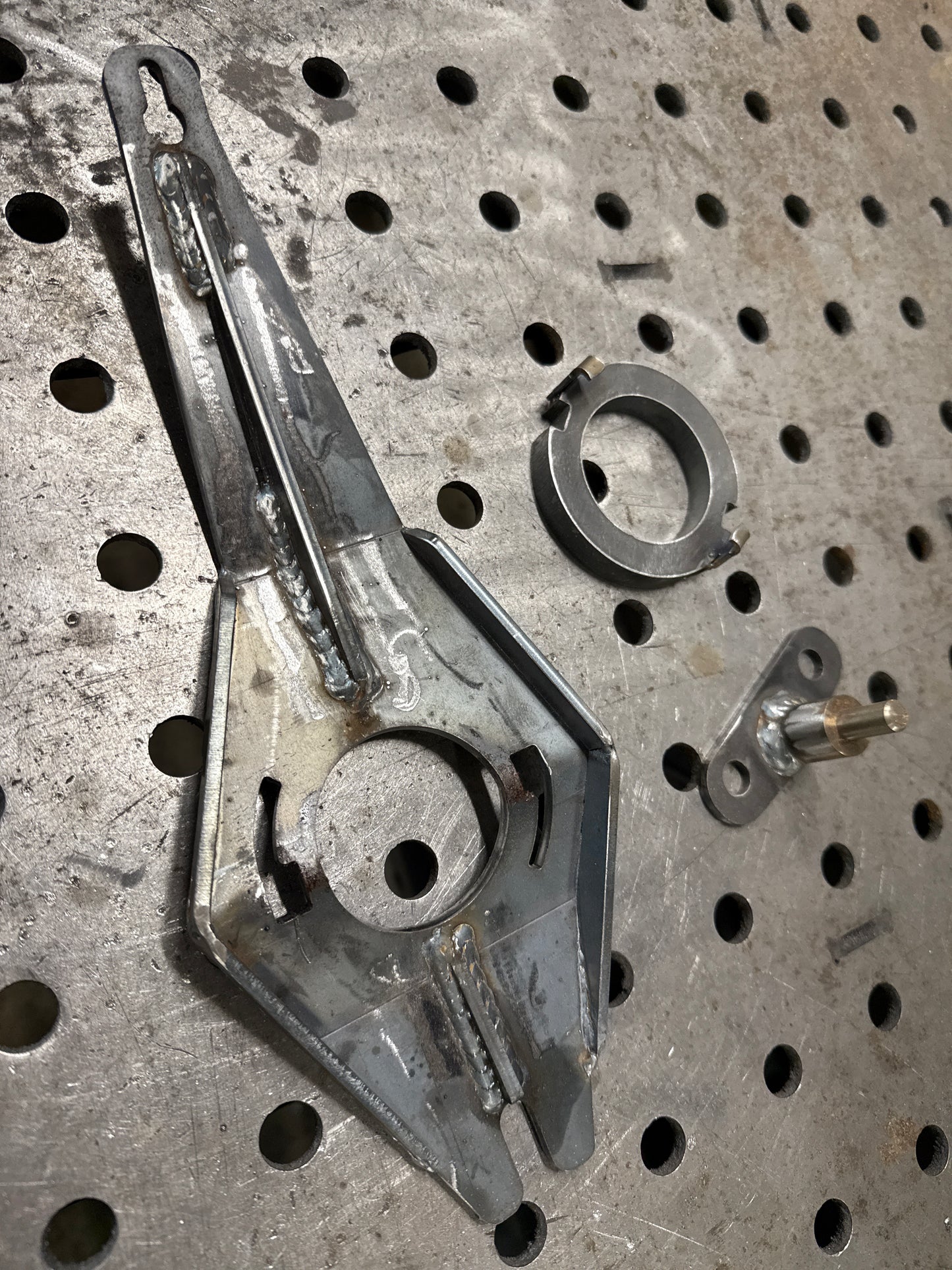

The kit contains a bracket that fixes into the gearbox bellhousing utilising existing bolt holes, a fabricated clutch fork bracket and release bearing 12mm spacer.

The standard Mazda release bearing is used with this conversion kit which can be bought here. Release bearing.

These will not work with twin plate clutches.
